Micro Hydro Tubrine 300KW Turgo Turbine for High Head Hydroelectric Systems

Short Description:

Power:                           300KW
Frequency:                    50Hz/60Hz
Certificate:                     ISO9001/CE/TUV
Voltage:                         400V/440V/6300V
Efficiency:                      91%
Flow Rate:                     0.25m³/s
Water Head:                  152m
Generator:                      Brushless Excitation

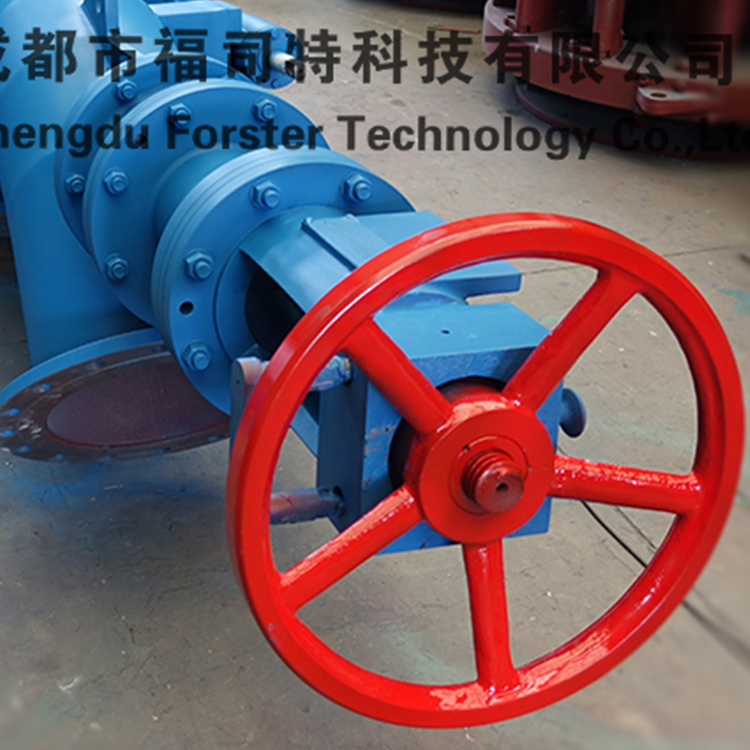

Valve :                            Butterfly Valve
Runner material:            Stainless Steel
Volute material:              Carbon Steel

Product Description

Product Tags

Micro Hydro Tubrine 300KW Turgo Turbine for High Head Hydroelectric Systems

Chengdu Froster Technology Co.,Ltd

Turgo turbine is one of impulse turbine, applicable water head 30 to 300 meter. The center of jet flow with runner gyration plane angled 22.5°. the water flow contracted by the spray nozzle , flows entering one side of runner and comes out from other side.

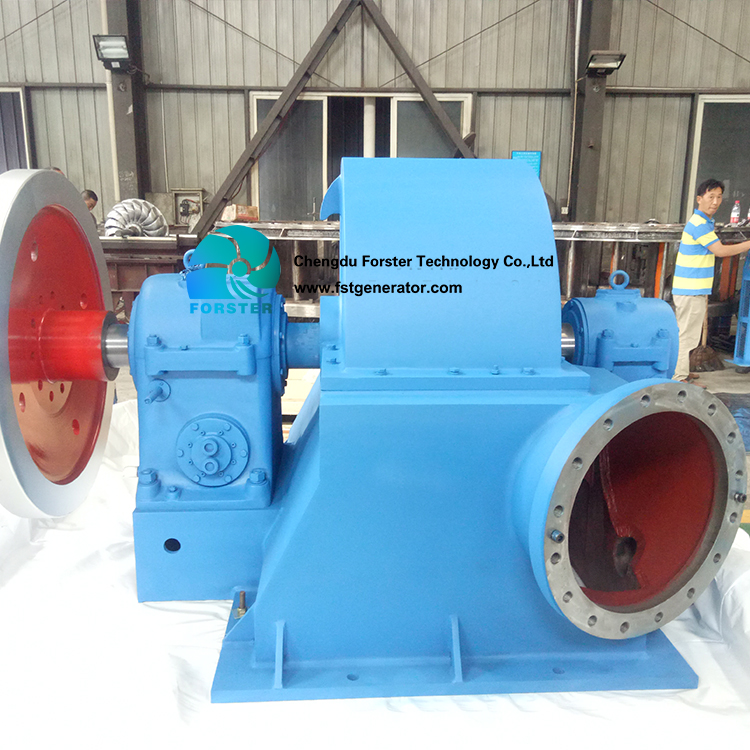

Horizontal unit has the advantages of simple structure,convenient repair,reduce the plant height,advantages in reducing excavation depth.
The vertical unit with plant plane size small,a runner can be provided with a plurality of nozzles,(at most can be installed six nozzles),high specific speed,the same size as units of capacity is relatively small,light weight and so on.

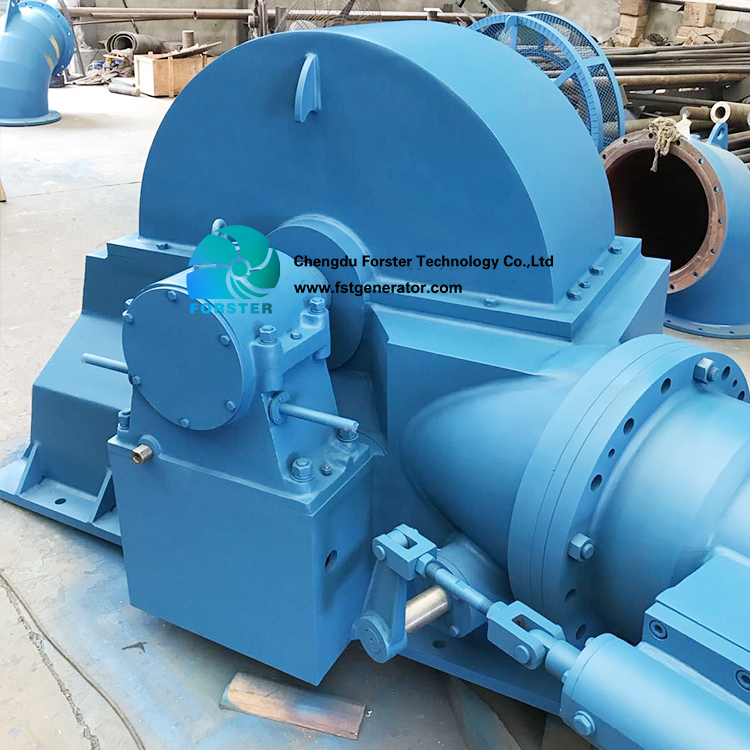

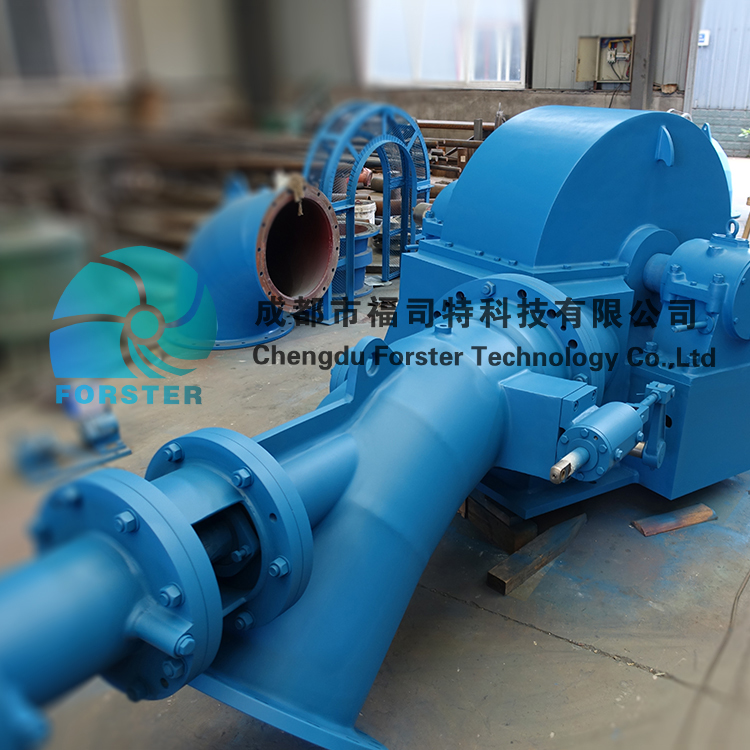

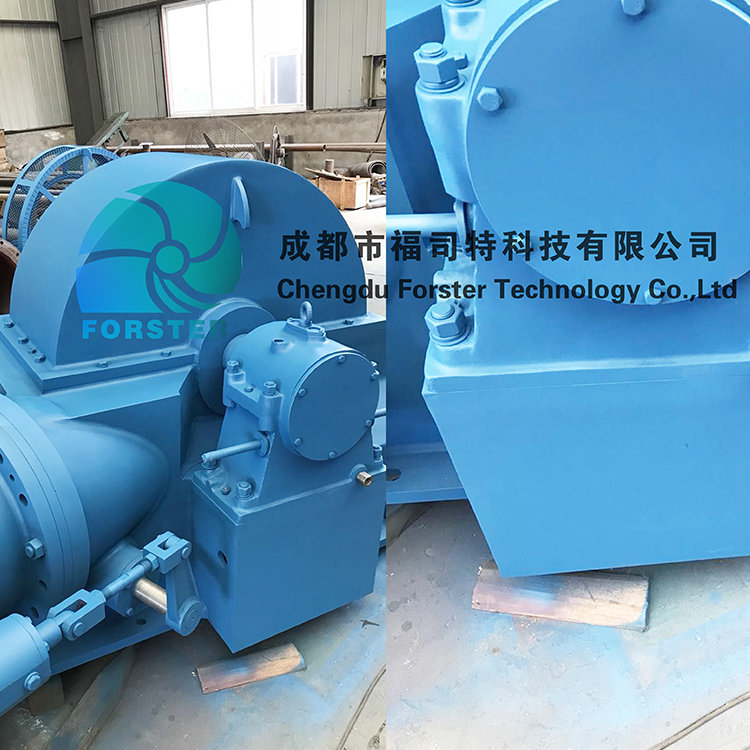

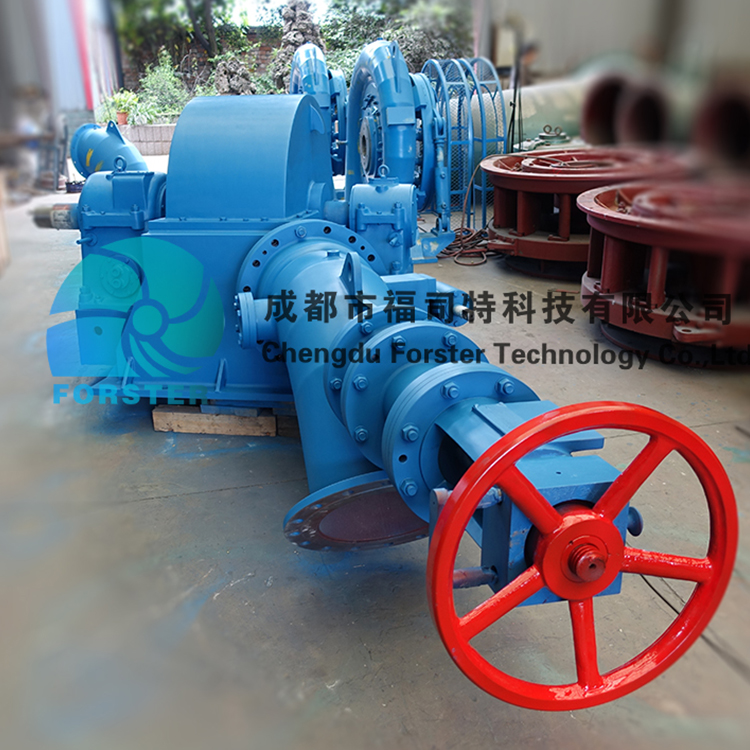

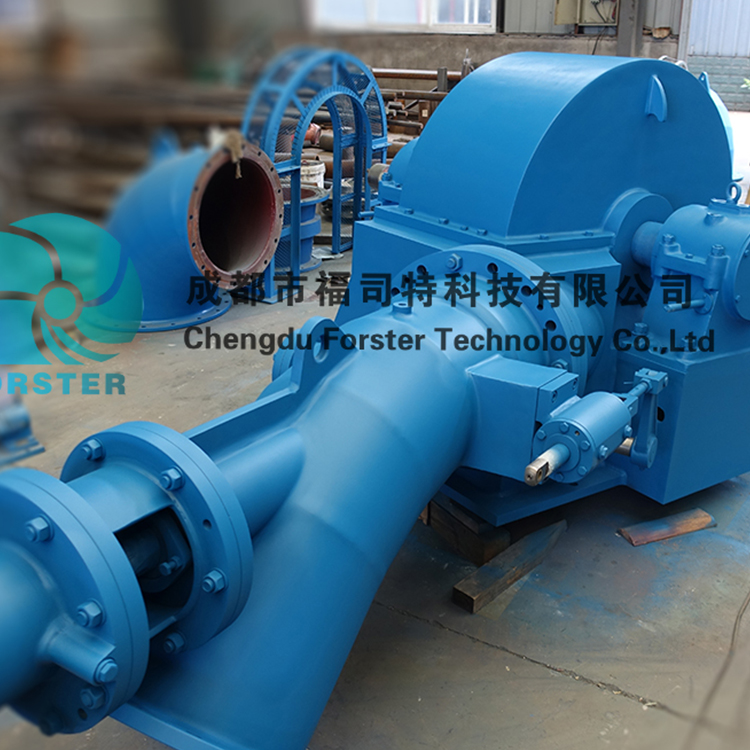

Turgo Hydro water Turbine

Processing Equipment

All production processes are performed by skilled CNC machine operators in accordance with ISO quality control procedures, all products are tested for many times

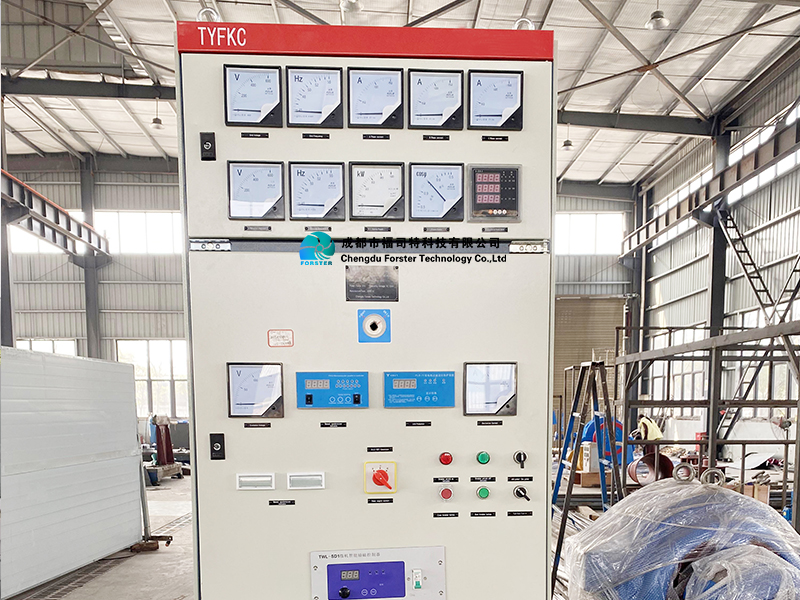

Electrical Control System

The multifunctional integrated control panel designed by Foster can monitor and adjust the current, voltage and frequency in time

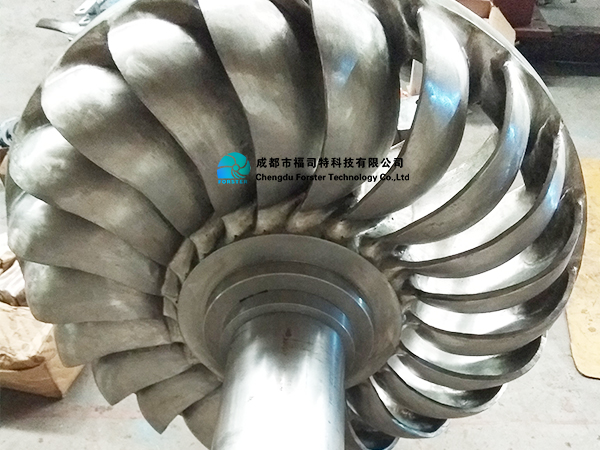

Runner and Blade

The runners and blades are made of stainless steel, which are more resistant to pressure and wear, and have a longer service life.

Product Advantages
1.Comprehensive processing capacity. Such as 5M CNC VTL OPERATOR, 130 & 150 CNC floor boring machines, constant temperature annealing furnace, planer milling machine, CNC machining center ect.
2.Designed lifespan is more than 40 years.
3.Forster provide one time free site service,if the customer purchases three units (capacity ≥100kw) within one year, or the total amount is more than 5 units. Site service included equipments inspection, new site checking, installation and maintainance training ect,.
4.OEM accepted.
5.CNC machining , dynamic balance tested and isothermal annealing processed,NDT test.
6.Design and R&D Capabilities,13 senior engineers with experienced in design and research.
7.The technical consultant from Forster worked on the hydro turbine filed for 50 years and awarded the Chinese State Council Special Allowance.

300KW Turgo Turbine Video
