Hydraulic Turbine Generator 250KW Hydroelectric Francis Turbine

Short Description:

Power:                           250KW
Flow Rate:                     0.5m³/s
Water Head:                  60m

Frequency:                    60Hz
Certificate:                     ISO9001/CE/TUV
Voltage:                         400V
Efficiency:                      93%
Rated Current:               451A
Generator:                     Brushless Excitation
Rated Rotating Speed:  900rpm
Runner Material:            Stainless Steel
VConnection Way:         Direct Connection

Product Description

Product Tags

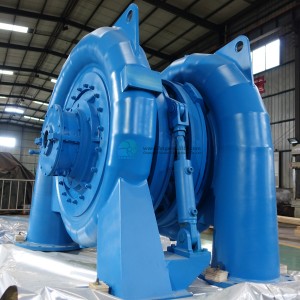

Forster Francis turbine is the ideal choice for medium head and large flow.
Forster Francis turbines are available in varying configurations, horizontal or vertical, with flexibility in design to ensure best efficiency and reliability of operation under the most extreme conditions.
Forster Francis turbines are characterized by incomparable longevity, durability, reliability, and robustness. Extensive research and development activities ensure best efficiency and maximum output, feasible over a wide range of operation, both in multiple and single unit configurations.
Forster Francis turbines are ideally suited for energy applications with a medium head of 20m up to 300m and an output of 10KW up to 10MW per unit. It has a very high degree of efficiency of more than 95 % and is an ubiquitously applicable turbine type.
Foster Francis turbine is a complete set of hydroelectric generating units, including valve, governor, control system and transformer.


Successful Application

Deliver Goods

On Sep 12th 2020, the 5X250KW francis turbine generator unit HPP from Uzbekistan customers was officially packaged for delivery.
From the previous order to the current delivery, it took 5.5 months. Because of its large flow and low head, the design of the fuselage is large.
After the final assembly and the pre-factory test last week, the painting process was started immediately and packaging began this week. The package is internally waterproof and moisture-proof, and the outer wooden box is closed to ensure that the customer's products are not affected by transportation and bad weather.
The Francis turbine generator is usually the customer's favorite model in HPP because it is suitable for medium heads, is easy to construct, and is extremely efficient.

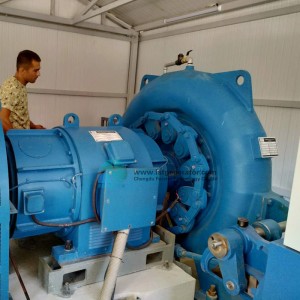

250KW Generator

Foster turbine equipment includes all the equipment needed to build a small power plant, such as turbines, generators, governors, control panels, valves, transformers, etc.


Custom Runner

The runner is the key to the turbine. Customers can choose stainless steel runner or carbon steel runner according to the situation.



In order to better protect the product during transportation, Foster uses a steel frame as the basic structure of the packaging box.

Product Advantages
1. Comprehensive processing capacity. Such as 5M CNC VTL OPERATOR, 130 & 150 CNC floor boring machines, constant temperature annealing furnace, planer milling machine, CNC machining center ect.
2.Designed lifespan is more than 40 years.
3. Forster provide one time free site service,if the customer purchases three units (capacity ≥100kw) within one year, or the total amount is more than 5 units. Site service included equipments inspection, new site checking, installation and maintainance training ect,.
4. OEM accepted.
5.CNC machining , dynamic balance tested and isothermal annealing processed,NDT test.
6.Design and R&D Capabilities,13 senior engineers with experienced in design and research.
7.The technical consultant from Forster worked on the hydro turbine filed for 50 years and awarded the Chinese State Council Special Allowance.
