Portable Outdoor Multifunctional Mobile Power Supply MPPT Controller with Flashlight Solar Panel and External Battery Source
Automobile Emergency Outdoor Multifunctional Convenient Wireless Mobile Power Supply
Portable power stations can be incredibly important for outdoor users, reliable energy can be provided anytime, anywhere. Vacorda is an established provider of inventive and practical energy solutions that cater to a diverse range of needs. Among our many products, we offer an exceptional line of portable power stations that boasts unrivaled performance and reliability. These power stations are designed to meet the needs of those who require portable solar power solutions, especially during emergencies or outdoor camping expeditions.
Whether outdoor users need a dependable source of energy for RV or tent or require a backup power source to ensure that the home remains functional during an electricity outage, Vacorda’s portable power stations are the perfect solution. These power stations are equipped with the latest cutting-edge technology that allows them to generate electricity from solar panels. They are not only environmentally friendly but are also incredibly efficient and easy to use. With a variety of configurations to choose from, Vacorda’s portable power stations are undoubtedly the best choice for anyone looking for a top-of-the-line solar-powered energy solution.
Interactive touch screen to show the working status and faulty diagnosis of the machine clearly
With built in wifi router and APP to monitor and control your home energy system in real time using your

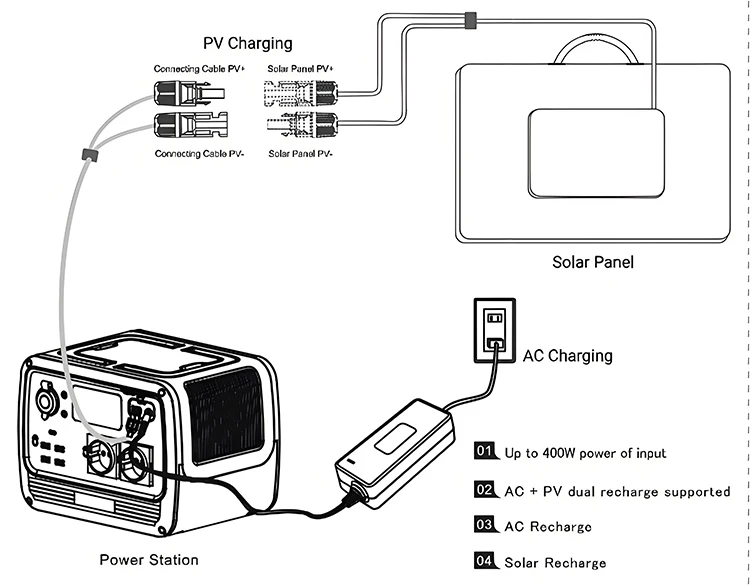

Flexible Charging Mode
Capable of charging most inductive load which below 2KW
Convert single phase to split phase by adding a bluetti split phase box
A wide range of PV input voltage by adding a PV step-down module
Safety Instructions
Please observe the following instructions to ensure safe usage:
1.Do not alter or disassemble this product.
2.Do not move during charging or using it, because the vibration and impact during moving will leadto poor contact of output interface.
3.In case of fire, use dry powder fire extinguishers for this product. Do not use water fireextinguisher,which may cause electric shock.
4.Close supervision is required when using this product near children.
5.Please confirm the rated specification of your load, and do not use it beyond the specification.
6.Do not place the product near heat sources, such as electric furnace and heaters.
7. Not permitted on aricrafts because the battery capacity exceeds 100Wh.
8.Do not touch the product or the plug-in points if your hands are wet.
9.Check the product and accessories prior to every use. Do not use if it is damaged or broken.
10.Please unplug the AC adapter from the wall outlet immediately in case of lightning stroke, whichmay cause heating, fire and other accidents .
11.Use original charger and cables.

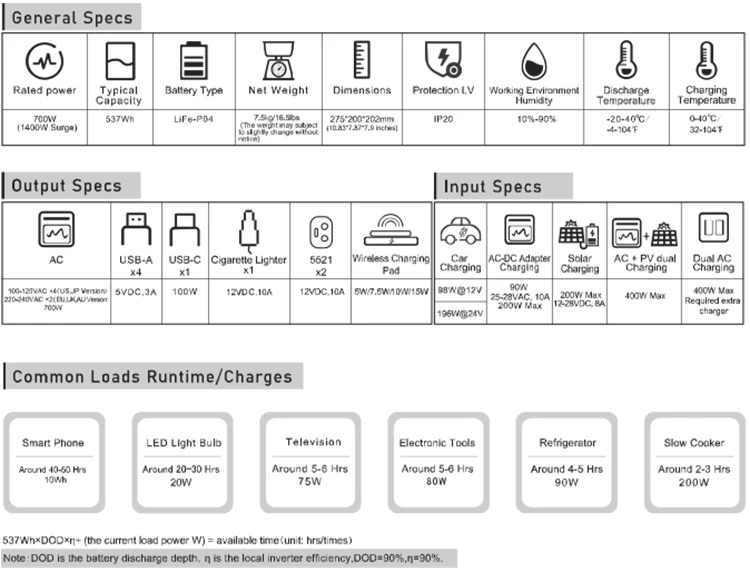

| Item | Nominal Value | Remarks | ||||
| AC Output | ||||||
| Output power | 700W | 1400W | Display accuracy ±30W | |||
| Voltage grade | 100Vac | 110Vac/120Vac/230Vac | AC output voltage | |||
| Overload capability | 105%<load<114%,2min; | LCD will report overload alarm after overload; disconnect AC output automatically when alarm lasts for 2min continuously; then remove load and restart AC. | ||||
| 114%<load<150%,1s; | ||||||
| <150%,0.5s; | ||||||
| 2,100W<load<2,625W,2min; | ||||||
| 2,625W<load<2,863W,8~10s; | ||||||
| BALDR 700WB500-S0-JP | Output voltage | 100V | 110V | 120V | No-load voltage error ±2V, output *6 | |
| Output current | 7A | 6.36A | 5.83A | / | ||
| Output frequency | 50/60Hz±0.5Hz | 60Hz by default, support setting via screen | ||||
| BALDR 700WB500-S0-EU | Output voltage | 230V | No-load voltage error ±2V, output *6 | |||
| Output current | 18.7A | / | ||||
| Output frequency | 50/60Hz±0.5Hz | 60Hz by default, support setting via screen | ||||
| Max. inversion efficiency | >90% | AC max. efficiency (>70% load) max. efficiency | ||||
| Current crest ratio | 3:1 | Max. value | ||||
| Output voltage harmonic wave | 3% | Under nominal voltage | ||||
| Output short circuit protection | Available | |||||
| Note: Total current is 30A;some loads will be turned off automatically when total current is over 30A | |||||
| Cigarette lighter | Output voltage | 12V | 13V | 14V | Interface Qty.: 1 |
| Output current | 9A | 10A | 11A | Cigarette lighter is in parallel connection with Interface 5521, total current is 10A | |
| overload power | 150W | 2S | |||
| Short-circuit protection | Available | ||||
| 5521 | Output voltage | 12V | 13V | 14V | Interface Qty.: 2 |
| Output current | 9A | 10A | 11A | 2 interfaces are in parallel connection with cigarette lighter, total current is 10A | |
| overload power | 150W | 2S | |||
| Short-circuit protection | Available | ||||
| USB A 4 | Output voltage | 4.90V | 5.15V | 5.3V | Interface Qty.: 4 |
| Output current | 2.9A | 3.0A | 3.8A | Two-way total power: 30W | |
| Short-circuit protection | Available | Auto recovery | |||
| Type-C | Interface type | Compatible with PD3.0(Max.100W) | Interface Qty.: 1 | ||
| Output parameters | 5V-15V/3A,20VDC/5A | ||||
| Short-circuit protection | Available | ||||
| Wireless charging | default | Compatible with QI | Interface Qty.: 1 | ||
| output power | 15W | ||||
| LEDs | Luminous intensity | 500LM | Lighting sequence: Half bright, fully bright, SOS signal, LED lamp is off. | ||
| DC input | |||||
| Input power | 200W | AMASS socket | |||
| Input voltage | 12VDC | 28VDC | |||
| Input current | 10ADC | ||||
| Working mode | MPPT | ||||
| Charger (T90) | |||||
| Output interface | 7909 socket | 200W charger (optional) | |||
| Max. output voltage | 27.5VDC | ||||
| Max. output power | 90W | ||||

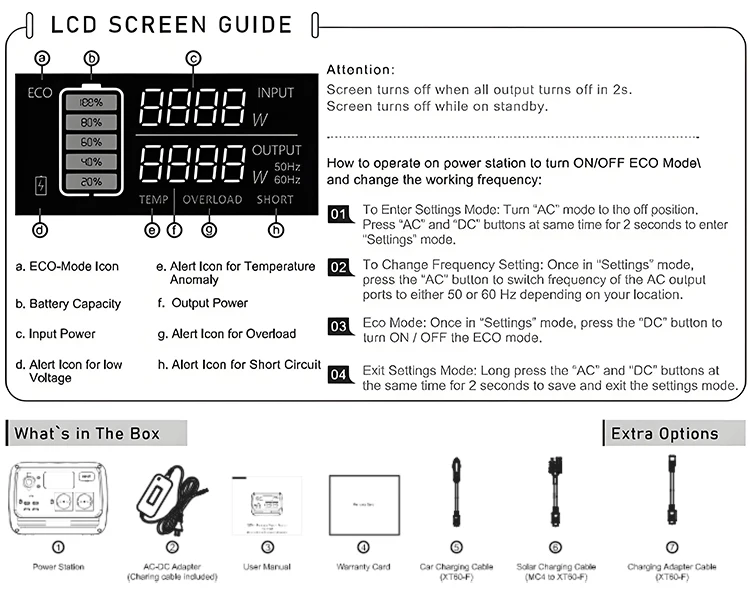

| Display interface | |||||
| LCD color screen | LCD | ||||
| Display function | (1) Display the battery capacity, input power, output power, AC frequency, overtemperature, overload and short circuit status; | ||||
| (2) The user can adjust the AC output frequency as 50Hz or 60Hz according to the specification; switch between ECO and non-ECO working mode. | |||||
