250KW Stainless Seel Wheel Hydro Pelton Turbine For High Head HPP
This Pelton Turbine is one of 3X250KW hydro pelton turbine generators delivery are special designed for a distinguished guest from the Middle East. After many communications between our designer and his technical team, we finally determined an optimal solution.Looking forward to working with this distinguished guest again.
Advantages of the 3X250KW Hydro Pelton Turbine Generators
1.The Turbine adopts CNC machining blades; dynamic balance check wheel; constant temperature annealing; all stainless steel runner, nozzle ring stainless steel nitriding; with flywheel and brake device, two fulcrum installation; with flywheel and brake.
2. Brushless excitation Generator, power factor - cosψ=0.8.
3.Fully automated control system
4.The Inlet Valve adopts electric gate valve, electric bypass, PLC interface.
5.External type Hydraulic microcomputer governors.
The following is the detailed parameter information of the 250kW Hydro Pelton Turbine Generator Unit:
Model: SFW250
Power: 250kw Insulation class: F/F
Voltage: 400V Power Factor cos: 0.8
Current: 451A Excitation Voltage: 127V
Frequency: 50Hz Excitation Current: 1.7A
Speed: 1000r/min Runaway Speed: 1660r/min
Standard No.GB/T 7894-2009
Phase:3 Stator winding method:Y

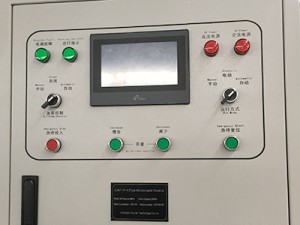

Electrical Control System
All production processes are performed by skilled CNC machine operators in accordance with ISO quality control procedures, all products are tested for many times
Processing Equipment
All production processes are performed by skilled CNC machine operators in accordance with ISO quality control procedures, all products are tested for many times
Runner
Runner has undergone a dynamic balance check and direct injection structure. The stainless steel runner, spray needle and stainless sealing ring have all been nitrided
Why Choose FORSTER
1.Comprehensive processing capacity. Such as 5M CNC VTL OPERATOR, 130 & 150 CNC floor boring machines, constant temperature annealing furnace, planer milling machine, CNC machining center ect.
2.Designed lifespan is more than 40 years.
3.Forster provide one time free site service,if the customer purchases three units (capacity ≥100kw) within one year, or the total amount is more than 5 units. Site service included equipments inspection, new site checking, installation and maintainance training ect,.
4.OEM accepted.
5.CNC machining , dynamic balance tested and isothermal annealing processed,NDT test.
6.Design and R&D Capabilities,13 senior engineers with experienced in design and research.
7.The technical consultant from Forster worked on the hydro turbine filed for 50 years and awarded the Chinese State Council Special Allowance.
