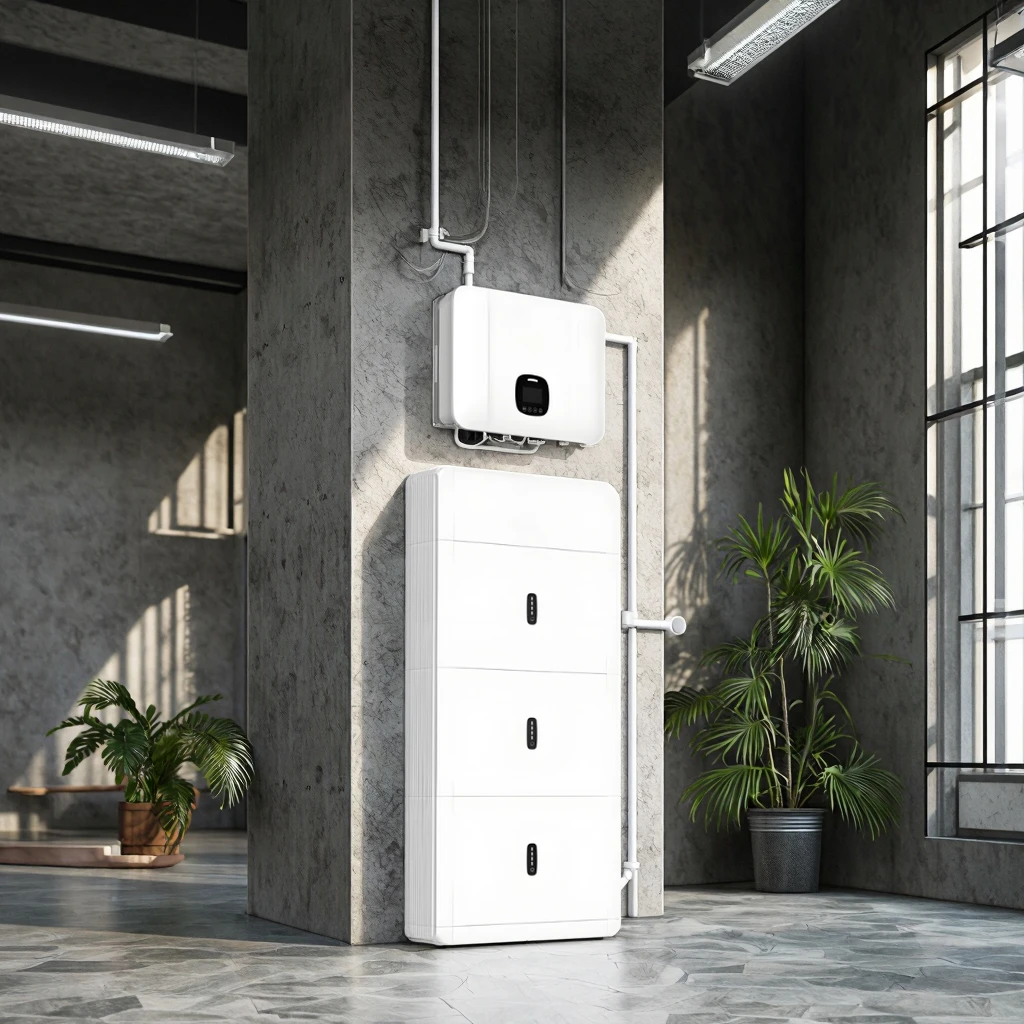

Portable Power Station 10kWh 15kWh 30 kWh 200Ah Lithium Storage Solar Power Battery Energy Storage System With Inverter
An All-in-One 5–30kWh Energy Storage System is a modular, integrated solution for residential, commercial, or small industrial energy storage. It typically includes everything needed for energy storage and management in one package.
The 5 KWh module adoptedenables variable capacity range of 5-30 kWh.
The switching time betweenon-off grid less than 10 ms secures Uninterruptable Power Supply for the load.
The Lithium Iron Phosphate (LFP) cell secures safe and reliable operation.
The automatic isolation of the faulty battery module secures smooth system operation.
The APP-based remote monitoring offers easy maintenance and unlimited function expansion.
The built-in Smart Grid Management module enables power grid dispatching.

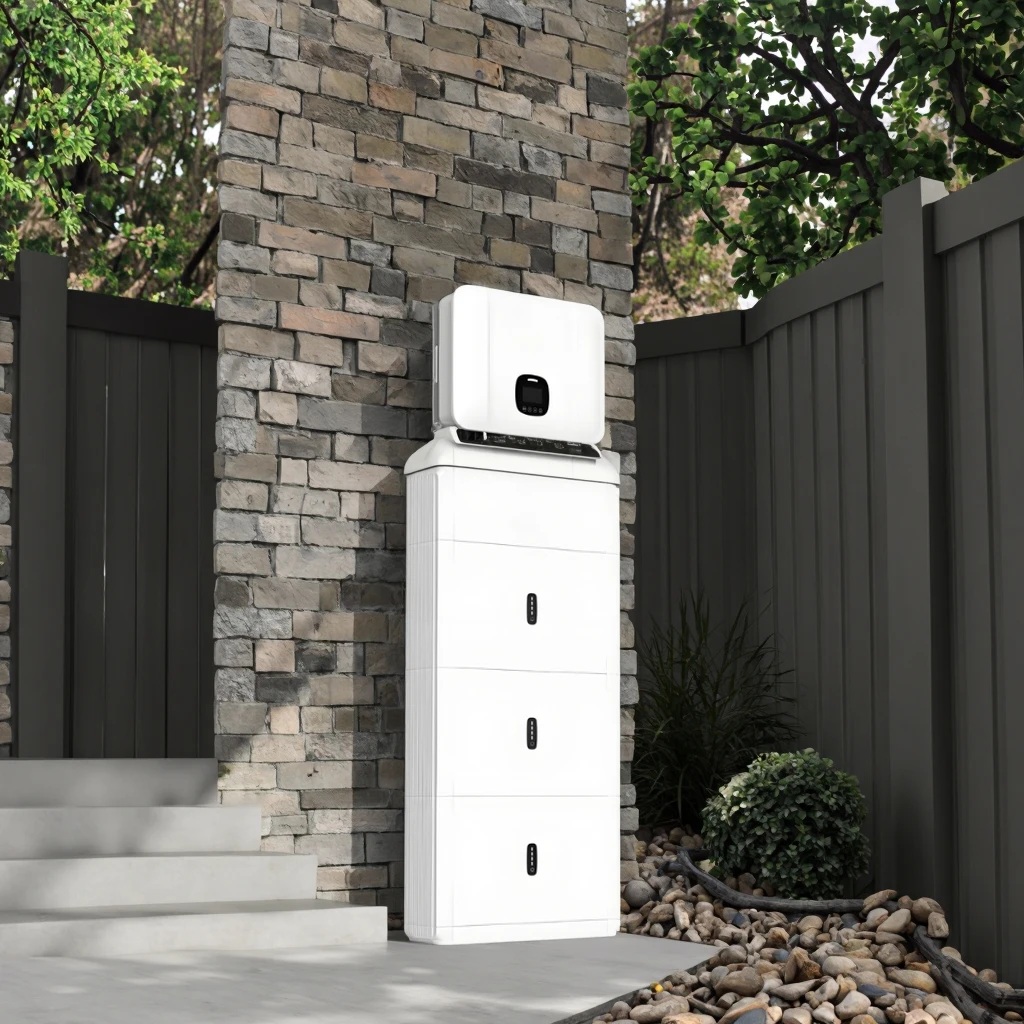

The Degree of Protection at IP65 makes it suitable for various harsh environments for application.
Safety Instructions
Please observe the following instructions to ensure safe usage:
1.Do not alter or disassemble this product.
2.Do not move during charging or using it, because the vibration and impact during moving will leadto poor contact of output interface.
3.In case of fire, use dry powder fire extinguishers for this product. Do not use water fireextinguisher,which may cause electric shock.
4.Close supervision is required when using this product near children.
5.Please confirm the rated specification of your load, and do not use it beyond the specification.
6.Do not place the product near heat sources, such as electric furnace and heaters.
7. Not permitted on aricrafts because the battery capacity exceeds 100Wh.
8.Do not touch the product or the plug-in points if your hands are wet.
9.Check the product and accessories prior to every use. Do not use if it is damaged or broken.
10.Please unplug the AC adapter from the wall outlet immediately in case of lightning stroke, whichmay cause heating, fire and other accidents .
11.Use original charger and cables.
Technical Tpecification
| System Specification | |
| Nominal Output Power | 4000W/5000W/6000W |
| Capacity Range | 5.12~30.72 kWh |
| Usable Capacity Range | 4.6~27.65 kWh |
| Battery Chemistry | LFP (LiFePO4) |
| IP Protection | IP65 (Outdoor) |
| Warranty | 5 Year Product Warranty, 10 Year Performance Warranty |
| Inverter Technical Specification | |
| Model | Venus 4000-S1/Venus5000-S1/Venus 6000-S1 |
| Phase | Single Phase |
| Max. PV Input Voltage | 600V |
| MPPT Voltage Range | 100V~550V |
| Max. PV Input Current | 13A/13A |
| Max. PV Input Power | 6000W/7500W/9000W |
| Max. MPPT Short-circuit Current | 18A/18A |
| Number of Independent MPPT | 2 |
| Start-up Voltage Range | 120V |
| Max. Charging/Discharging Current | 80A/100A/100A |
| Max. Charging/Discharging Power | 4000W/5000W/6000W |
| Nominal Output Voltage on Grid | 220V,230V,240V (comply with local regulations) |
| Output Voltage Range on Grid | 180 ~ 276V |
| Rated Grid Output Frequency on Grid | 50 Hz/60 Hz |
| Max.AC output Power | 4000W/5000W/6000W |
| Nominal AC Output Voltage | 230V |
| Communication | CAN2.0/RS485, Wifi/GPRS(optional) |
| Display | LCD&APP |
| Dimension(W*H*D) mm | 540X450X185 |
| Battery Technical Specification | ||||||
| Module Model | Limestone 15H-P Limestone 20H-P | |||||
| Module Capacity | 5.12kWh | 10.24kWh | 15.35kWh | 20.48kWh | 25.64kWh | 30.72kWh |
| Usable Capacity | 4.6kWh | 9.21kWh | 13.81kWh | 18.43kWh | 23.04kWh | 27.65kWh |
| Nominal Voltage | 51.2V | |||||
| Max. Charging
/Discharging Power |
2.5kW | 5kW | 5kW | 5kW | 5kW | 5kW |
| Operating Temperature Range | -20~+50 ℃ | |||||
| Dimension(W*H*D) mm | 650X620X180 | 650X980X180 | 650X1340X180 | 650X980X180 | 650X1340X180 | 650X1340X180 |

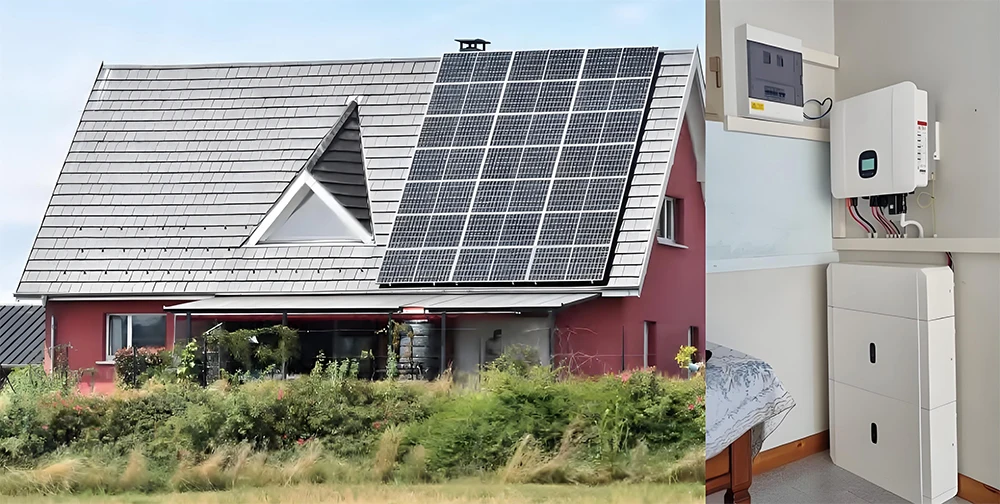

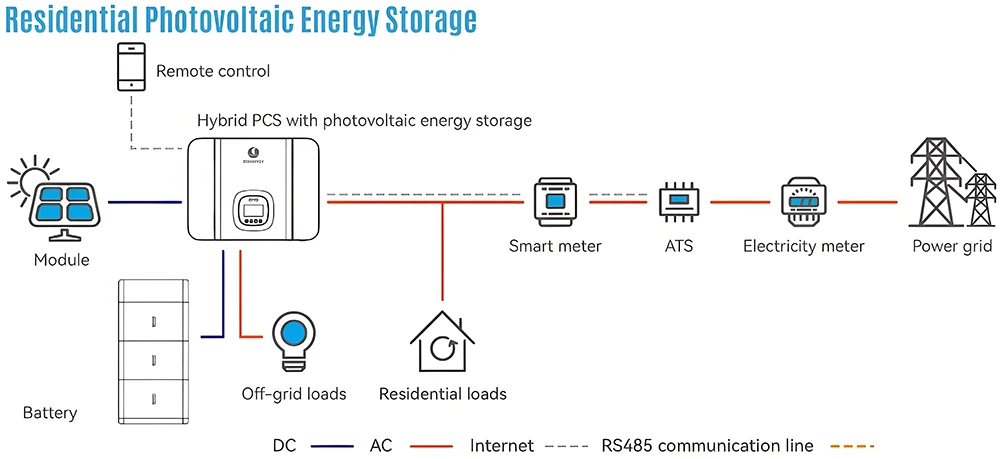

Application Solution
