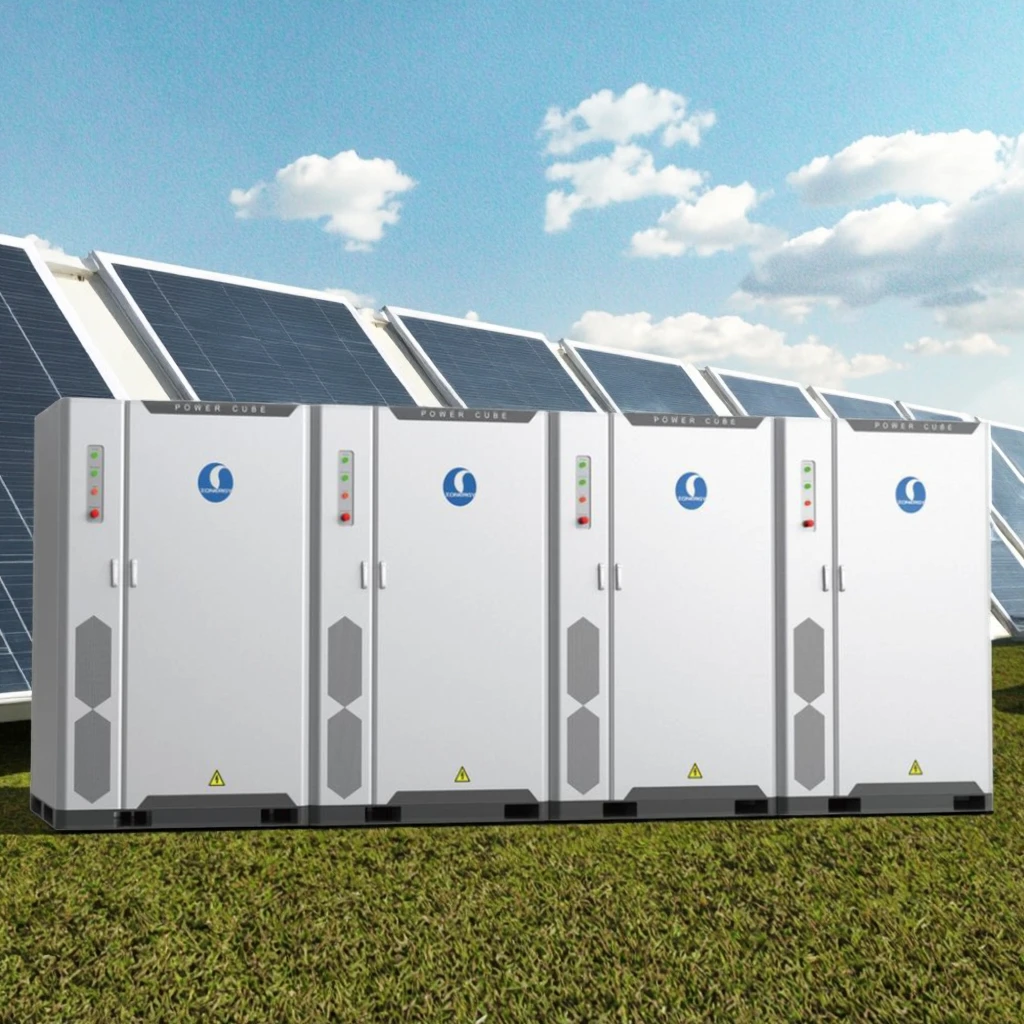

500kWh 1000kWh 2MWh 4.5MW 5MWh Air Cooling Energy Storage System Home Energy Storage With Energy System Management
Portable power stations can be incredibly important for outdoor users, reliable energy can be provided anytime, anywhere. Vacorda is an established provider of inventive and practical energy solutions that cater to a diverse range of needs. Among our many products, we offer an exceptional line of portable power stations that boasts unrivaled performance and reliability. These power stations are designed to meet the needs of those who require portable solar power solutions, especially during emergencies or outdoor camping expeditions.
Whether outdoor users need a dependable source of energy for RV or tent or require a backup power source to ensure that the home remains functional during an electricity outage, Vacorda’s portable power stations are the perfect solution. These power stations are equipped with the latest cutting-edge technology that allows them to generate electricity from solar panels. They are not only environmentally friendly but are also incredibly efficient and easy to use. With a variety of configurations to choose from, Vacorda’s portable power stations are undoubtedly the best choice for anyone looking for a top-of-the-line solar-powered energy solution.
Within this category, our company offers commercial battery storage solutions for energy storage systems and maximizing energy efficiency. Our products are designed to provide reliable and high-quality performance, ensuring businesses can operate optimally while meeting their energy needs. With our commercial battery storage options, you can rest easy knowing that your business utilizes the most efficient and practical energy solutions.
Safety Instructions
Please observe the following instructions to ensure safe usage:
1.Do not alter or disassemble this product.
2.Do not move during charging or using it, because the vibration and impact during moving will leadto poor contact of output interface.
3.In case of fire, use dry powder fire extinguishers for this product. Do not use water fireextinguisher,which may cause electric shock.
4.Close supervision is required when using this product near children.
5.Please confirm the rated specification of your load, and do not use it beyond the specification.
6.Do not place the product near heat sources, such as electric furnace and heaters.
7. Not permitted on aricrafts because the battery capacity exceeds 100Wh.
8.Do not touch the product or the plug-in points if your hands are wet.
9.Check the product and accessories prior to every use. Do not use if it is damaged or broken.
10.Please unplug the AC adapter from the wall outlet immediately in case of lightning stroke, whichmay cause heating, fire and other accidents .
11.Use original charger and cables.
| Technical Parameters | BLUE 100kW280Ah-T1 | BLUE 150kW280Ah-T1 |
| DC | ||
| Battery Voltage Range | 500 V-850 V | |
| Maximum Current | 220 A | 330 A |
| Photovoltaic Input | ||
| Maximum Photovoltaic Input Voltage | 500 V | |
| Maximum Photovoltaic Power | 120 kW | 180 kW |
| Mppt Voltage Range | 200 V ~ 500 V | |
| Number of MPPT | 2 | 3 |
| Energy Storage Battery | ||
| Cell Type | LFP 280 Ah | |
| Nominal Voltage | 749 VDC | |
| Nominal Power | 1.12 MWh (maintenance from the interior) 1.68 MWh (maintenance from the exterior) | |
| AC (on-grid) | ||
| Maximum Apparent Power | 110 kVA | 165 kVA |
| Rated Output Power | 100 kW | 150 kW |
| Rate Voltage | 400 V | |
| Voltage Range | 320 V-460 V | |
| Maximum Current | 144 A | 217 A |
| Rated Frequency | 50/60 Hz | |
| Frequency Range | 45-55/55-65 Hz | |
| THDi | <3% | |
| Power Factor | 1 leading ~ 1 lagging (settable) | |
| AC System | 3W+N+PE | |
| AC (off-grid) | ||
| Rated Voltage | 400 V | |
| THDU | ≤ 3% linear | |
| Rated Frequency | 50/60 Hz | |
| Overload Capacity | 110% long-term | |
| General data | ||
| Maximum Efficiency | 96.00% | |
| Degrees of Protection | IP55 | |
| Noise | <65dB | |
| Ambient Temperature | -30 ℃~ +55 ℃ | |
| Cooling Mode | Temperature controlled forced air cooling | |
| Relative Humidity | 0 ~ 95% non condensing | |
| Altitude for Product Operation | 5000 m (Rating reduction occurs when the altitude for product application rises above 3000 m.) | |
| Battery Compartment Dimension (mm) | 6058*2438*2591 | |
| Isolation Transformer | available | |
| Self Power Consumption After System Shut-down | <500W | |
| Display | ||
| Display | TP LCD | |
| BMS Communication Interface | RS485/CAN | |
| Local Communication | RS485/TCP/IP | |
