Hydro Generator 30kW Francis Turbine Generator For Hydroelectric Generator Power Plant

Short Description:

Output:                          30KW
Flow Rate:                     0.1-0.3m³/s
Water Head:                  15m
Frequency:                    50Hz/60Hz
Certificate:                     ISO9001/CE
Voltage:                         400V/380V
Efficiency:                      85%
Generator Type:             SFW30
Generator:                     Brushless Excitation
Valve :                           Customized
Runner Material:           Customized


Product Description

Product Tags

Key Features
1.Micro Design: Unleash the potential of small water flows with this turbine, perfect for confined spaces and unlocking hydroelectricity dreams!
2.High-Efficiency Output: Generating 30KW, this Francis Turbine efficiently converts water flow into reliable electricity, meeting the energy needs of homes and small businesses.
3.Easy Maintenance: Designed for simplicity, operation is a breeze. Enjoy stable and dependable performance, minimizing maintenance and operational costs.
4.Environmentally Friendly: Embrace the green energy revolution! This micro turbine is a clean, renewable energy solution, fulfilling our commitment to environmental responsibility.
5Real-time Monitoring: Equipped with advanced monitoring systems, stay in control of your power generation wherever you are, providing convenience for your energy management.
Your Home, Your Power Plant!
In this rapidly evolving era of energy, we offer a reliable, efficient, and eco-friendly choice. The 30KW Micro Francis Turbine ignites your life, releasing green energy into your world.

Specifications of 30kW Francis Turbine Generator

Rated Head 15(meters)
Rated Flow 0.1-0.3(m³/s)
Efficiency 85(%)
Output 30(KW)
Voltage 400 (V)/380V
Frequency 50 or 60(Hz)
Rotary Speed 750(RPM)
Phase Three(Phase)
Altitude ≤3000(meters)
Protection Grade IP44
Temperature -25~+50℃
Relative Humidity ≤90%
Connection Method Straight League
Safety Protection Short circuit Protection
Insulation Protection
Over Load Protection
Grounding Fault Protection
Packing Material Standard wooden box fixed with steel frame

Details Images

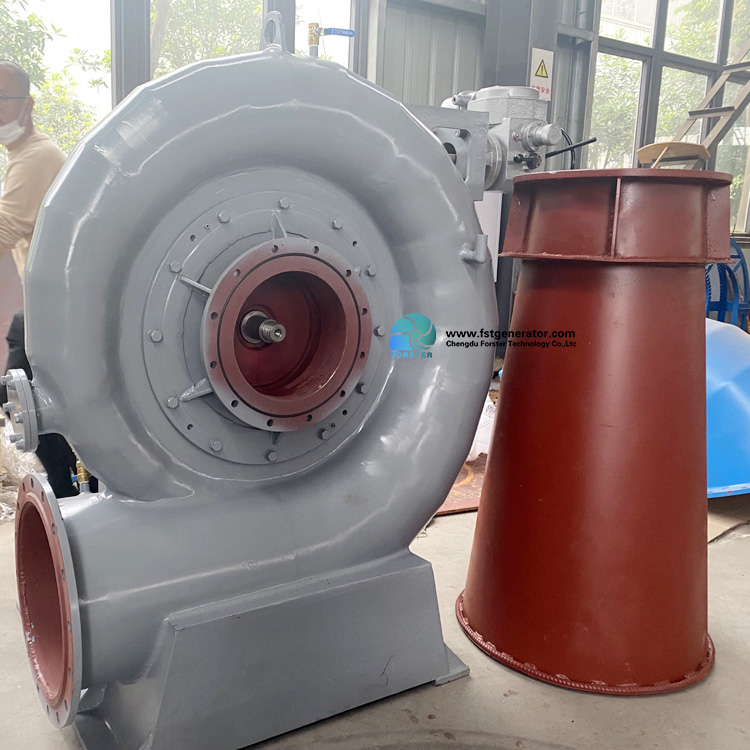

30kw3 (5)

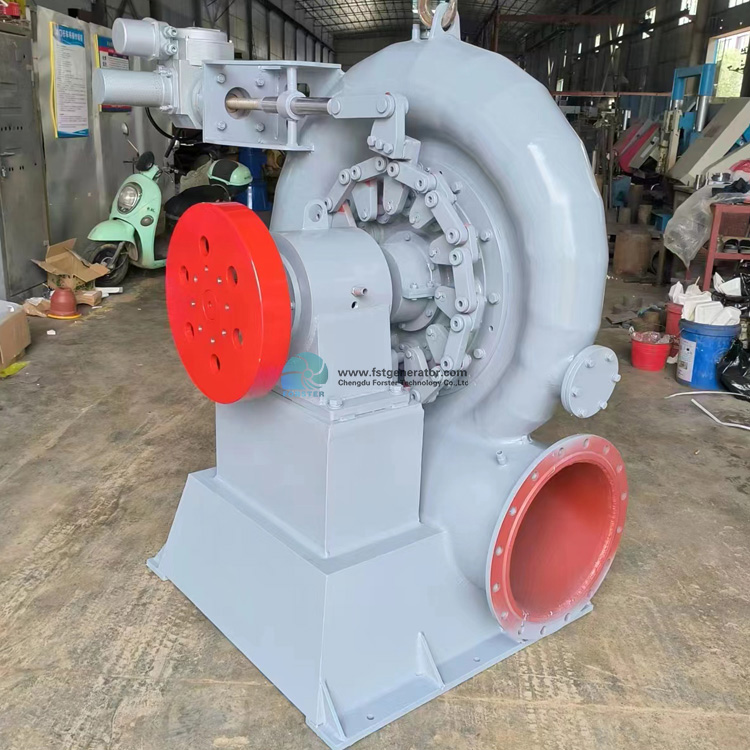

30kw 45(3)
