Standing atop the Baihetan Hydropower Station, with the wind whispering over the colossal structure and the mighty Jinsha River flowing steadily below, one cannot help but feel a profound sense of awe. This is not just a dam; it is a testament to human ingenuity and a beacon of sustainable energy. Located on the border between Sichuan and Yunnan provinces in Southwest China, Baihetan is the world’s second-largest hydropower station in terms of total installed capacity, a true “pearl” on the Jinsha River .
Conquering the “Unbreakable Curse”
The Baihetan dam is a 289-meter-high double-curvature arch dam, a colossal structure built to withstand immense pressures . For decades, the dam construction industry was haunted by the saying “no dam does not crack,” primarily due to the heat generated when concrete cools and contracts . Baihetan’s engineers, however, have successfully tackled this challenge.
Their secret weapon? The extensive use of a special low-heat cement developed in China throughout the entire dam . This innovative material significantly reduced the thermal stress during the concrete setting process. Furthermore, the construction process was a marvel of precision. To ensure perfect conditions, the team embedded over 6,000 temperature sensors and 80,000 meters of optical fibers within the dam structure, creating an intelligent “nervous system” that monitored the concrete’s condition in real-time . The result is an astonishing achievement: over 8 million cubic meters of concrete were poured without a single temperature-related crack, a fact proudly symbolized by a 36.74-meter-long core sample extracted from the dam, the longest of its kind in the world .
The Heart of the Giant: A Million-Kilowatt Powerhouse

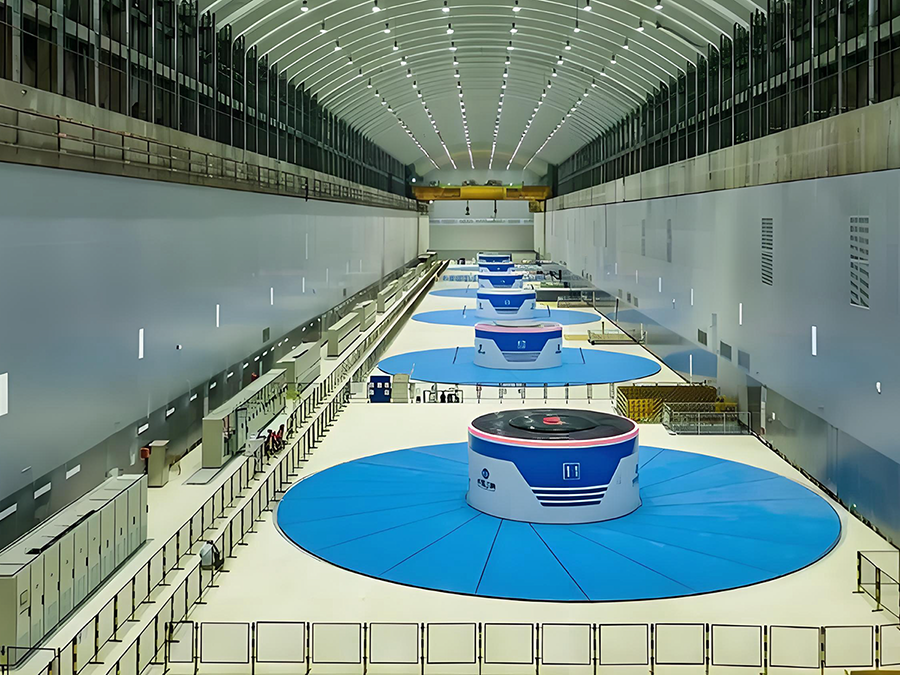

The true power of Baihetan lies deep within the mountain caverns. Descending into the right-bank underground powerhouse is like entering a cathedral dedicated to clean energy. Here, eight massive cylindrical turbines are aligned in a vast hall so large it could accommodate an aircraft carrier .
These are the world’s first 1-million-kilowatt hydro-turbine generators, each weighing an incredible 8,000 tons—equivalent to the Eiffel Tower . Their manufacturing is a pinnacle of Chinese independent innovation and technological prowess . The precision involved is mind-boggling. While these giants spin at 111 revolutions per minute, their vibration is minimal. In a remarkable demonstration of stability, staff can balance a coin upright on the turbine housing while the unit is operating, a feat made possible by confining the axis deviation to a mere 20-30 micrometers, far exceeding the national standard .
The output of these units is equally staggering. A single rotation of one turbine generates 150 kWh of electricity . Operating at full capacity for one hour, one unit produces one million kWh of electricity, enough to meet the annual electricity needs of approximately 400 ordinary households . When all 16 units are running, the station’s annual average power generation reaches about 62.4 billion kWh, capable of supporting the yearly electricity consumption of around 75 million people .
Powering a Green Future
The significance of Baihetan extends far beyond this remote canyon. It is a critical link in China’s “West-East Power Transmission” project, sending clean electricity over 2,000 kilometers to fuel the economic hubs in the Yangtze River Delta, including cities like Jiangsu and Zhejiang . This clean energy is pivotal for regional development, even powering major events like the Hangzhou Asian Games .
Most importantly, Baihetan joins five other mega-projects—Xiluodu, Xiangjiaba, Wudongde, the Three Gorges Dam, and Gezhouba—to form the world’s largest clean energy corridor on the Yangtze River . This corridor, with a total installed capacity of 71.695 million kilowatts, generates an average of 300 billion kWh annually, equivalent to the electricity consumption of 300 million people for a year . By replacing fossil fuels, Baihetan alone helps save approximately 19.68 million tons of standard coal and reduces carbon dioxide emissions by 51.6 million tons each year, making a substantial contribution to the global fight against climate change .
A Lasting Impression
Leaving the subterranean halls and emerging back into the daylight, the scale of human endeavor at Baihetan sinks in. It is more than a collection of world records—for scale, technological difficulty, and generator unit capacity . It is a symbol of what can be achieved with perseverance, innovation, and a commitment to a cleaner planet. The sight of the calm reservoir set against the rugged mountains is a powerful reminder that this “megaproject” not only harnesses nature’s force but does so with a profound respect for precision and sustainability, lighting the way to a cleaner, brighter future for all.
